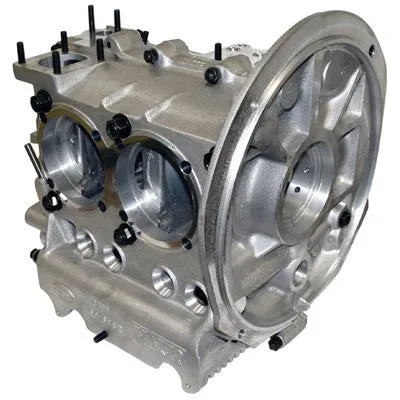

EMPI engine cases are all new construction with numerous design features added in right from the start. All cases are made from high quality aluminum alloy and are fully CNC machined. EMPI Super stock cases are the best choice for all out hi-performance engine building. This block is set for 86mm crank x 94mm cylinders with 8mm studs.

These cases weigh approximately 41 to 44 lbs.
• Made from high quality Aluminum with numerous design
features.
• Dual Relief Design for Type 1, 2 or 3 applications.
• Shuffle Pins (6) on all main saddles for a snug fit, zero gap
and longevity.
• Bubble Top / Raised Roof Design with a strong radius
design adding strength and allowing additional clearance
for up to an 86mm Crank.
• Ported and smoothed for better flow.
• Filled in (not welded) support behind #3 cylinder.
• Available Drilled & Tapped for Full Flow – w/plugs supplied.
• Main Oil Gallery tapped for ease of cleaning.
• Large Oil pick-up tube.
• Modification to Fan Housing Required.
• Uses Metal Cam Plug 113-101-157C or Aluminum Cam
Plug with O-Ring P/N 16-9524.

EMPI # 98-0454-B                                   BJU
